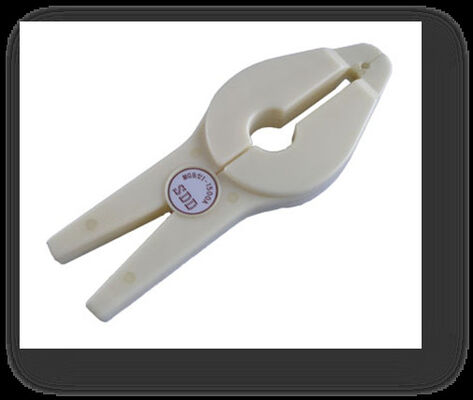

8mm Clamp On Current Transformer
Product Summary
JawΦ8mm AC Current Probe clamp transformer MODEL Q835 Features Measurement range of 1mA to 120A AC Improved ergonomic design and easy operation High content nickel metal core Low phase shift for power measurement Small, compact size Jaw opening accommodates conductors up to 13mm diameter Designed ...
Product Custom Attributes
Q8 8mm Clamp On Current Transformer
,10A Q8 Clamp On Current Transformer
,Q8 clamp ct transformer
Basic Properties
Trading Properties
Product Description
JawΦ8mm AC Current Probe clamp transformer MODEL Q835
Features
Measurement range of 1mA to 120A AC
Improved ergonomic design and easy operation
High content nickel metal core
Low phase shift for power measurement
Small, compact size
Jaw opening accommodates conductors up to 13mm diameter
Designed for DMMs, loggers, recorders and oscilloscopes
40Hz to 10kHz response
1mA/A AC output signals
Designed to EN 61010, 600V CAT III safety standard
UL, CE mark
- Characteristic Unique double jaws design, so that a variety of functions As a whole, the product can be used to achieve 5A, 500A, 1000A cable and copper bar measurement,Thus, the cost of complete test equipment can be reduced
- size:110mm×295mm×35mm
- Load capacity:MA output≤4Ω,1A output 0.1Ω,
-
5Aoutput 2.5va
- Installation method:clamp type
- Output :down-lead output
- parameter:
| Primary current | Secondary current | Class % |
| 5A,1000A | 5mA,1A | 0.1,0.2 |
| 5A,500A | 5mA,500mA | 0.1,0.2 |
※Can be customized according to user needs
