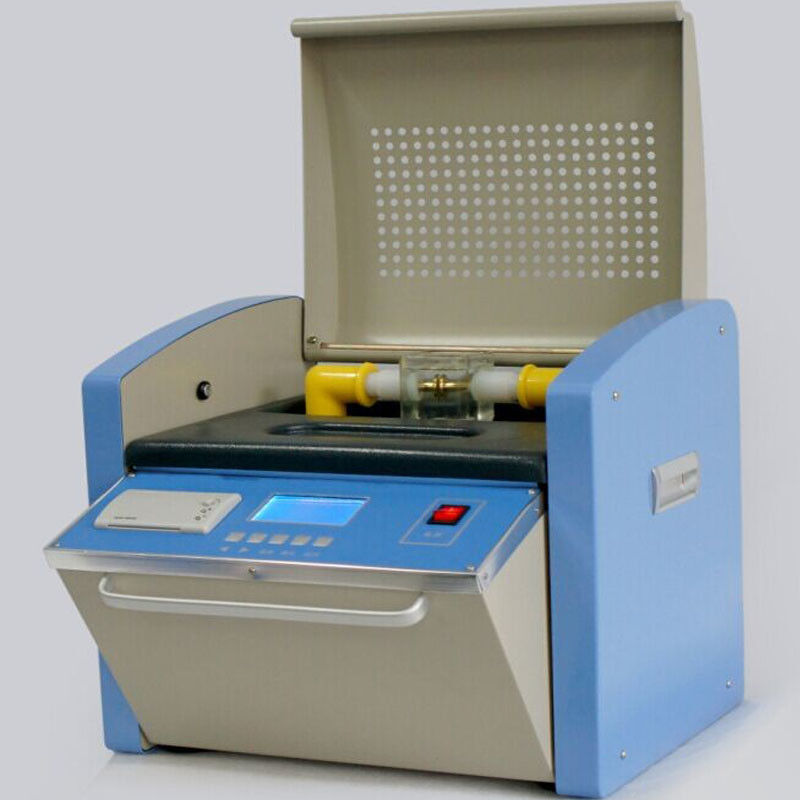

Transformer Oil Dielectric Strength Test Kit
Product Summary
Insulation Oil Dielectric Strength Test Kit Features With microprocessor, automatically fulfill the test for oil circulation with a range of 0～80KV Large screen LCD display Automatically complete withstand-voltage test of oil after simple setting Can save breakdown voltage value (1 to 6 times) and ...
Product Custom Attributes
Basic Properties
Place of Origin:
China
Trading Properties
Minimum Order Quantity:
1
Packaging Details:
Composite Board package
Delivery Time:
20-25 days
Payment Terms:
T/T
Product Description
Insulation Oil Dielectric Strength Test Kit
Features
- With microprocessor, automatically fulfill the test for oil circulation with a range of 0～80KV
- Large screen LCD display
- Automatically complete withstand-voltage test of oil after simple setting
- Can save breakdown voltage value (1 to 6 times) and recurrent times
- With in-built thermal printer, which can print each breakdown and average voltage value
- Can save 100 pcs test results
- Can display current ambient temperature and humidity
- Adopt a single-chip microcomputer to boost the voltage at an even speed.
- Equipped with over-voltage, over-current and limit protections to ensure the safety of operators
- With the function of displaying the measured temperature and system clock.
- Communicate with computer with a standard RS232 interface
Applications
Testing of insulating liquids in transformers, bushings, switchgear, capacitors and hydraulics
Major Technical Index
- Output voltage: 0～80KV (100kv optional)
- Voltage distortion rate: ＜3%
- Voltage rising speed: 0.5～5KV/S (adjustable)
- Standing time: 15min (adjustable)
- Boosting interval: 5 min (adjustable)
- Boosting frequency: 1～6 time(s) (optional)
- Booster capacity: 1.5KVA
- Measuring accuracy: ±3％
- Supply voltage: AC240V±10% 50Hz±1Hz
- Power consumption: 200W
- Oil volume:400 ml
- Applicable temperature: 0℃～45℃
- Applicable humidity: ＜75%RH
Overall dimension: 465×385×425
