6000A Class 1.0 Flexible Rogowski Coil Online Monitoring
Product Summary
MH-RC01 Series Flexible Rogowski Coil AC Current Probe (Sensor) SPECIFICATIONS Rogowski Coil (Flexible) Phase/Range: Three Phases, 0-300% variable of rated input current Rated Input Range: 250 Amp to 5,000 Amp (or customized) available Output: 0.333 V at rated current (up to 5 V available) Accuracy: ...
Product Custom Attributes
Class 1.0 Flexible Rogowski Coil
,2m Flexible Rogowski Coil
,6000A AC Current Probe
Basic Properties
Trading Properties
Product Description

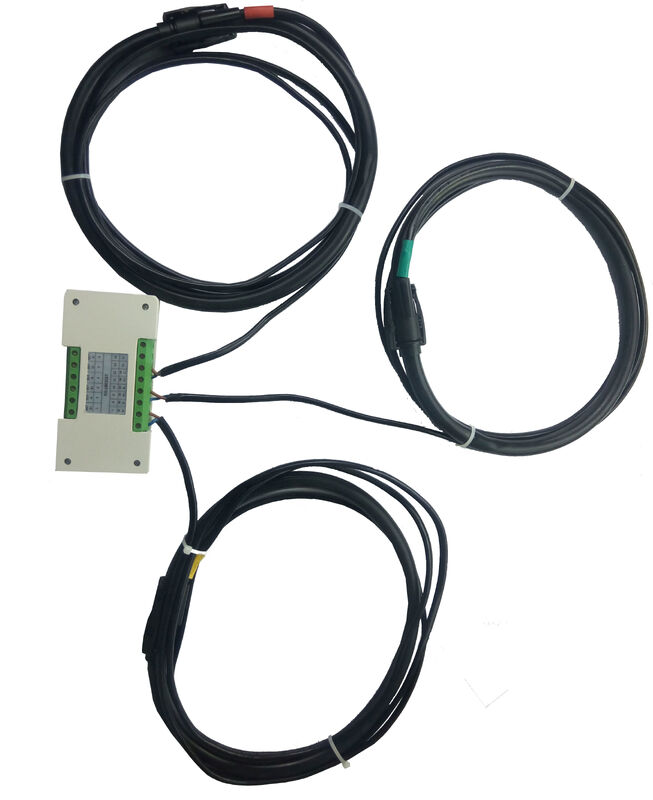

MH-RC01 Series Flexible Rogowski Coil AC Current Probe (Sensor)
SPECIFICATIONS
Rogowski Coil (Flexible)
Phase/Range: Three Phases, 0-300% variable of rated input current
Rated Input Range: 250 Amp to 5,000 Amp (or customized) available
Output: 0.333 V at rated current (up to 5 V available)
Accuracy: ±1%
Phase accuracy (45-65HZ): < 0.5 degrees
Phase accuracy (45-2500HZ): conform to IEC60044-8:2002 standard
Harmonic measure can be up to 51 times
Integrator
Power supply: 9-36 VDC or AC 110-240V (or customized)
Output cable to integrator: 2m
Probe
Length/diameter: 610mm/12mm (or customized)
Part Number and Rating
| Model No. | Rated input Current |
| MH-RC01-0250 | 250Amp |
| MH-RC01-0400 | 400Amp |
| MH-RC01-0500 | 500Amp |
| MH-RC01-0800 | 800Amp |
| MH-RC01-1000 | 1000Amp |
| MH-RC01-1500 | 1500Amp |
| MH-RC01-2000 | 2000Amp |
| MH-RC01-2500 | 2500Amp |
| MH-RC01-3000 | 3000Amp |
| MH-RC01-4000 | 4000Amp |
| MH-RC01-5000 | 5000Amp |
| MH-RC01-6000 | 6000Amp |
Connection
Terminal 1 OUT+ of phase A
Terminal 2 OUT- of phase A
Terminal 3 OUT+ of phase B
Terminal 4 OUT- of phase B
Terminal 5 OUT+ of phase C
Terminal 6 OUT- of phase C
Terminal 7 IN+ of phase A
(Connect the brown wire of the probe with the yellow marking and labeled phase A )
Terminal 8 IN- of phase A
(Connect the blue wire and shielding layer of the probe with the yellow marking
and labeled phase A )
Terminal 9 IN+ of phase B
(connect the brown wire of the probe with the green marking and labeled phase B )
Terminal 10 IN- of phase B
(connect the blue wire and shielding layer of the probe with the green marking and
Labeled phase B )
Terminal 11 IN+ of phase C
(connect the brown wire of the probe with the red marking and labeled phase C )
Terminal 12 IN- of phase C
(connect the blue wire and shielding layer of the probe with the red marking
and labeled phase C)
Terminal 13 power + (9-36V DC)
Terminal 14 power - (0V DC)
