Q8 AC Current Clamp Probe , 0.2% Current Probe For Multimeter
Product Summary
JawΦ8mm AC Current Probe clamp transformer MODEL Q8B Characteristic: apply to test on line below 5A 10A Jaw:Φ8mm Size :44mm×159mm×23mm Load capacity:≤4Ω Installation method:clamp type Output :down-lead output parameter: Electrical parameters Ratio 1000: 1 or 2000:1 (customized) Accuracy class 0.1% ...
Product Custom Attributes
JAW:
8MM
Size:
44mm×159mm×23mm
Installation Method:
Clamp Type
Characteristic:
Apply To Test On Line Below 5A 10A
Load Capacity:
≤4Ω
Accuracy Class:
0.1%,0.2%
Highlight:
Q8 AC Current Clamp Probe
,Q8 4ohm AC Current Clamp Probe
,Q8 0.2% Current Probe For Multimeter
Basic Properties
Place of Origin:
China
Brand Name:
HNMC
Model Number:
Q8B
Trading Properties
Minimum Order Quantity:
1
Packaging Details:
wooden package
Delivery Time:
4-8weeks
Payment Terms:
L/C, T/T, Western Union,
Product Description

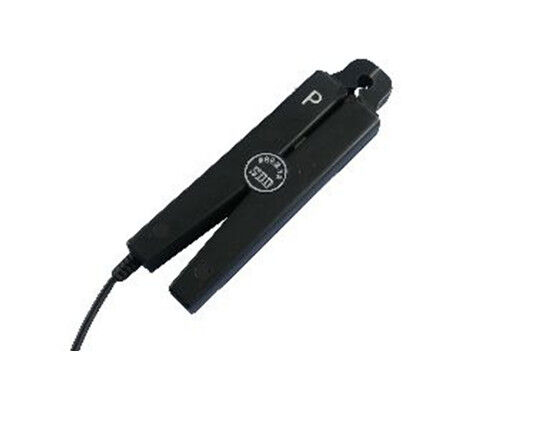

JawΦ8mm AC Current Probe clamp transformer MODEL Q8B
- Characteristic: apply to test on line below 5A 10A
- Jaw:Φ8mm
- Size :44mm×159mm×23mm
- Load capacity:≤4Ω
- Installation method:clamp type
- Output :down-lead output
- parameter:
| Electrical parameters | |
|---|---|
| Ratio | 1000: 1 or 2000:1 (customized) |
| Accuracy class | 0.1% |
| Primary current | 0 - 30A AC |
| Secondary current | 0 - 10mA AC (customized) |
| Max. Cont. Input current | 12 A |
| Load capacity | ≤4Ω |
| Over voltage category | CAT III 600V |
| Output signal (AC current) | From 0 to 10mA AC at nominal input current |
| Output signal (AC voltage) | From 0 to 100mV AC at nominal input current |
| Frequency range | 40Hz-2000Hz |
| Dielectric strength | 3KV 50Hz/60Hz at 1minute |
| Temperature range | -20°C to +55°C |
| Output | 2.5 meter cable with D01 connector |
| Max. voltage not insulated conductors | 600 V |
| Standard | EN 61010-1, EN 61010-2-032, IEC60044-1 |
| Installation | Clamp type |
| Output mode | Lead output(2.5m) |
| Mechanical parameters | |
| Dimensions (L x W x H) (mm) | 42.6x122.5x23 |
| Weight (g) | 250 |
| Holding wire diameter (mm) | φ8 |
| Max. jaw opening (mm) | 8 |
| Color | Black |
| Material | PC+ABS+Polycarbonate, UL94 V0 |
| Primary current | Secondary current | Turn compensation | Class % |
| 5A | 2mA | none | 0.2,0.5 |
| 5A | 2mA | 200 | 0.2 |
| 5A | 2.5mA | none | 0.2,0.5 |
| 5A | 2.5mA | 200 turns | 0.2 |
| 5A | 5mA | none | 0.2,0.5 |
| 5A | 5mA | 200 turns | 0.2 |
| 5A | 5mA | 400 turns | 0.2 |
| 5A | 10mA | none | 0.2,0.5,1.0 |
| 6A | 5mA | 400 turns | 0.2 |
| 10A | 4mA | none | 0.2,0.5,1.0 |
| 10A | 5mA | none | 0.2,0.5,1.0 |
| 20A | 5mA | none | 0.2 |
| 20A | 10mA | none | 0.2,0.5,1.0 |
| 30A | 2.5V | none | 0.5 |
※Can be customized according to user needs
