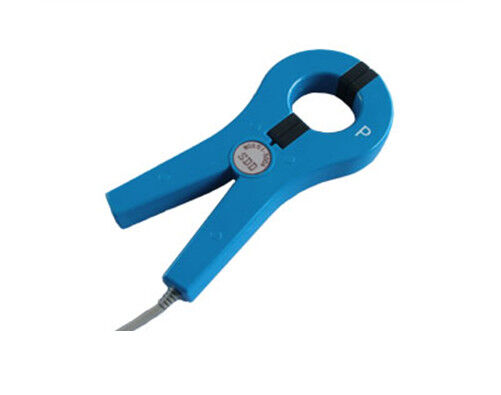

Q50A 50mm AC Current Clamp Probe With Permalloy Core
Product Summary
JawΦ50mm AC Current Probe clamp transformer MODEL Q50A Custom AC Permalloy Current Probe 1000A / 5A for Ethernet Power Meter The Q50A is a 1000 Amp current probes which can measure 0-1000A cable while measuring without power off. Permalloy current probe Q50A features a 2 in. (50 mm) jaw size and ...
Product Custom Attributes
Q50A AC Current Clamp Probe
,1000A AC Current Clamp Probe
,50mm ac dc current probe
Basic Properties
Trading Properties
Product Description
JawΦ50mm AC Current Probe clamp transformer MODEL Q50A
Custom AC Permalloy Current Probe 1000A / 5A for Ethernet Power Meter
The Q50A is a 1000 Amp current probes which can measure 0-1000A cable while measuring without power off.
Permalloy current probe Q50A features a 2 in. (50 mm) jaw size and high linearity. Product comes with a year warranty.
Color has blue and grey as options.
Applications
Electric energy meter calibrator (on site)
Double clamp type ground resistance tester
Double clamp type phase volt-ampere meter
Digital multi-meter
Multi-function energy meter
Power quality analyzer
Matched instruments
Calibration instrument on site
Features
Suitable for 1000A cable online measurement.Holding wire diameter: φ50mm
Dimension: 101mm×219mm×26mm
Load capacity: mA output≤4Ω, 1A output 0.1Ω, 5A output 2.5VA
Installation: clamp type
Output mode: lead output
Parameter
| Primary current | Secondary current | Class % |
| 10A | 2.5mA | 0.1,0.2,0.5 |
| 10A | 5mA | 0.1,0.2,0.5 |
| 20A | 5mA | 0.1,0.2,0.5 |
| 100A | 20mA | 0.1,0.2,0.5 |
| 100A | 40mA | 0.1,0.2,0.5 |
| 100A | 50mA | 0.1,0.2,0.5 |
| 100A | 100mA | 0.1,0.2,0.5 |
| 200A | 80mA | 0.1,0.2,0.5 |
| 200A | 100mA | 0.1,0.2,0.5 |
| 200A | 200mA | 0.1,0.2,0.5 |
| 300A | 120mA | 0.1,0.2,0.5 |
| 300A | 150mA | 0.1,0.2,0.5 |
| 300A | 200mA | 0.1,0.2,0.5 |
| 300A | 300mA | 0.1,0.2,0.5 |
| 500A | 100mA | 0.1,0.2,0.5 |
| 500A | 200mA | 0.1,0.2,0.5 |
| 500A | 250mA | 0.1,0.2,0.5 |
| 500A | 500mA | 0.1,0.2,0.5 |
| 600A | 120mA | 0.1,0.2,0.5 |
| 600A | 200mA | 0.1,0.2,0.5 |
| 600A | 300mA | 0.1,0.2,0.5 |
| 600A | 400mA | 0.1,0.2,0.5 |
| 600A | 500mA | 0.1,0.2,0.5 |
| 600A | 600mA | 0.1,0.2,0.5 |
| Primary current | Secondary current | Class % |
| 700A | 200mA | 0.1,0.2,0.5 |
| 700A | 350mA | 0.1,0.2,0.5 |
| 700A | 700mA | 0.1,0.2,0.5 |
| 700A | 700mA | 0.1,0.2,0.5 |
| 800A | 160mA | 0.1,0.2,0.5 |
| 800A | 200mA | 0.1,0.2,0.5 |
| 800A | 250mA | 0.1,0.2,0.5 |
| 800A | 320mA | 0.1,0.2,0.5 |
| 800A | 400mA | 0.1,0.2,0.5 |
| 800A | 500mA | 0.1,0.2,0.5 |
| 800A | 800mA | 0.1,0.2,0.5 |
| 500A～800A | 1A | 0.2,0.5 |
| 600A～800A | 1A | 0.1,0.2,0.5 |
| 200A | 5A | 1.0 |
| 300A～500A | 5A | 0.5 |
| 500A～800A | 5A | 0.2,0.5 |
| Ground resistance tester | Special instrument | 0.1,0.5 |
| Electrical parameters | |
| Ratio | 1000: 1 or 2000:1 (customized) |
| Accuracy class | 0.1%, 0.2%, 0.5% |
| Primary current | 0 - 1000A AC |
| Secondary current | 0 - 5A AC (customized) |
| Max. Cont. Input current | 1200A |
| Over voltage category | CAT III 600V |
| Output signal | 500mA,1A,5A AC at nominal input current |
| Frequency range | 40Hz-2000Hz |
| Dielectric strength | 3KV 50Hz/60Hz at 1 minute |
| Temperature range | -20°C to +55°C |
| Output | 2.5 meter cable with D01 connector |
| Max. voltage not insulated conductors | 600 V |
| Standard | EN 61010-1, EN 61010-2-032, IEC60044-1 |
| Installation | Clamp type |
| Output mode | Lead output (2.5m) |
| Mechanical parameters | |
| Dimensions (L x W x H) (mm) | 102.9 x 219.6 x 28 |
| Weight (g) | 550 |
| Holding wire diameter (mm) | φ50 |
| Max. jaw opening (mm) | 50 |
| Jaw color | Blue |
| Material | PC+ABS+Polycarbonate, UL94 V0 |
