Single Phase Energy Meter Testing Equipment For Aging Cyclometer
Product Summary
Single Phase Meter Aging and Cyclometer Test Equipment 1. Widely used in meter factories 2. Stable qualtity and economic budget 3. 96 positions Feature & Characteristic 1. Whole system mainly including source and 96 positions mounting rack 2. Aluminum extrusions frame, special material for this ...
Product Custom Attributes
3000VA 240V Energy Meter Testing Equipment
,3000VA Energy Meter Testing Equipment
,3000VA 96 positions meter testing equipment
Basic Properties
Trading Properties
Product Description

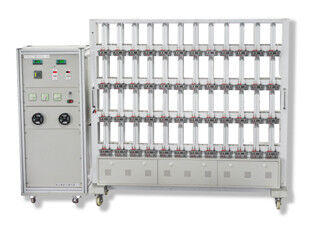

Single Phase Meter Aging and Cyclometer Test Equipment
1. Widely used in meter factories
2. Stable qualtity and economic budget
3. 96 positions
Feature & Characteristic
1. Whole system mainly including source and 96 positions mounting rack
2. Aluminum extrusions frame, special material for this bench rack
3. With various protections as below
4. Voltage circuit: over voltage and over current protection
5. Current circuit: secondary circuit over current protection
6. Regulator thermostat control and Fan cooling at room temperature
7. With counting and timing control
8. Three universal changeover switch: current range switch, reversing switch, load matching switch
9. With digital indicator, voltage and phase can be read directly, also can read percentage of current
10. With communication interface RS485
Technical Index
| Indicator accuracy | |
| Voltage | 1.0 |
| Current | 1.0 |
| Output | |
| Voltage | 0-240V |
| Current measuring range | 1.5A, 5A, 10A, 20A, 40A |
| Power |
voltage loop: <3000VA current loop: <3000VA |
| Input voltage (power supply): 220V+/-10% | |
| Dimension | |
| Control source | 600*500*1520mm (L*W*H) |
| Mounting rack | 1800*550*1800mm(L*W*H) |
