Integrator AC Current Clamp Probe , 1% Rogowski Coil Flexible Current Transformers
Product Summary
Rogowski Flexible Coil AC Currrent Probe MH-RC03 series 1. The coil output gives a low voltage signal, therefore there is no danger from open-circuited secondary. This makes Rogowski transducers extremely suitable for temporary measurements, for example in combination with portable analysers. 2. ...
Product Custom Attributes
Integrator AC Current Clamp Probe
,10Hz AC Current Clamp Probe
,1.0 Rogowski Coil Flexible Current Transformers
Basic Properties
Trading Properties
Product Description

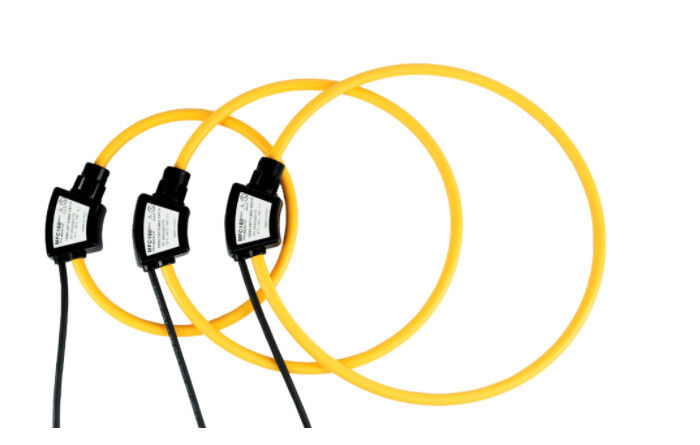

Rogowski Flexible Coil AC Currrent Probe MH-RC03 series
1. The coil output gives a low voltage signal, therefore there is no danger from open-circuited secondary.
This makes Rogowski transducers extremely suitable for temporary measurements, for example in combination with portable analysers.
2. Unlike traditional current transformer with magnetic core, the Rogowski coil is a non-intrusive transducer. Since it has no hard core,
it draws no power from the main circuit carrying the current to be measured.
3. The absence of magnetic core grants a wide frequency response.
1. Three phases with three ranges by switch
2. Rogowski coil with integrator
3. Current range can be customized
4. Accuracy: +/-1%
5. Harmonic measurement up to 51 times
SPECIFICATION
| Phases/Ranges | Three Phases and Three Ranges |
| Measuring ranges | 100/500/2500A, 30/300/3000A,or 60/600/6000A (or customized) |
| Output sensitivity | max 1V or 1A AC (or customized) |
| Accuracy |
±1% of reading ± 0.1A (100/500A, 30/300A or 60/600A ranges) ±1% of reading ±1A (2500A, 3000A or 6000A range) |
| Minimum load | 100kΩ for specified accuracy |
| Frequency range | 10Hz to 10 KHz (-1 dB) |
| Phase (45-65Hz) | <±1° |
| Harmonic measure | up to 51 times |
| Phase (45-2500Hz) | conform to IEC60044-8:2002 standard |
| Temperature coefficient | ±0.1℃ |
| Power supply | 120-270V AC 100-300V DC |
Probe
Probe lengths 610mm
Probe diameter 12mm
Probe output cable: 2m probe to integrator
(Exact details can be customized)
Integrator
Dimensions:132*86*46(L*W*D)mm
Output connection: 0.5m coax cable terminated with 3 safety male BNC
Interface: The aviation plug
(Input with three aviation plugs, output with one aviation plug and power supply with
one)
General Characteristics
Operating temp. -20°C - +65°C
Storage temp. -40°C - +75°C
