100V Power Test Equipment , 20mA Surge Arrester Tester
Product Summary
ZnO Surge Arrester On-line Tester MCZA 6820 Function & Character 800X480 lattice 65K true color LCD display, data is clear and legible. High accuracy sampling, processing circuit, Advance Fourier harmonic analysis technology, data is reliable. Directly collect signal of voltage and current. Test ...
Product Custom Attributes
20mA Power Test Equipment
,worksite Power Test Equipment
,100V Surge Arrester Tester
Basic Properties
Trading Properties
Product Description

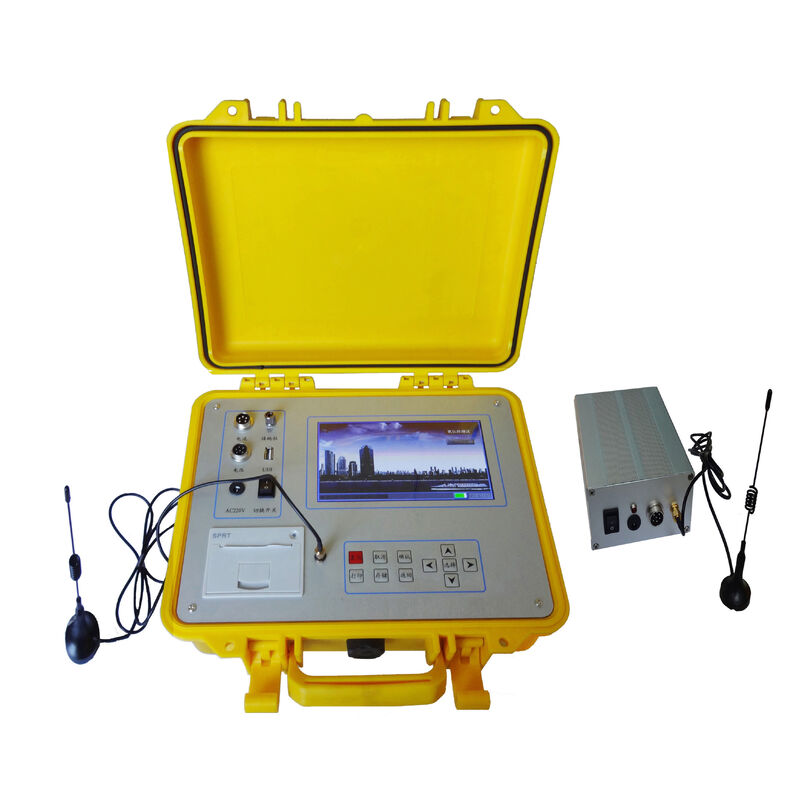

ZnO Surge Arrester On-line Tester MCZA 6820
Function & Character
- 800X480 lattice 65K true color LCD display, data is clear and legible.
- High accuracy sampling, processing circuit, Advance Fourier harmonic analysis technology, data is reliable.
- Directly collect signal of voltage and current.
- Test harmonic content- 3,5,7order harmonic wave in single or three phase or at the same time.
- Have resistive current basic wave peak output function
- With inbuilt memory, can save 50 groups test datum and test result.
- With USB Port, could save arbitrary data.
- Voltage and current test cable have prevent wrong connection function,
- Have wireless transmitting module,wireless acquisition and match host to measure wireless.
- Inbuilt high accuracy real-time o’clock, calibrate date and time in any time.
- With high speed thermal printer, can print test result at site
- With rechargeable battery as power supply, would work more than 6 hours continuously ,also have low battery signal and current range indicator on the display
Technical Index
1. voltage and current parameter :
| Test item | Test range | Test accuracy |
| Full current | 0-20mA | ±(readingX5%＋5µA) |
| Resistive current | 0-20mA | ±(readingX5%＋5µA) |
| Capacitive current | 0-20mA | ±(readingX5%＋5µA) |
| Current harmonic | 0-20mA | ±(readingX10%＋10µA) |
| Reference voltage | Max.100V RMS | ±(readingX5%＋0.5V) |
| Voltage harmonic | Max.100V RMS |
±(readingX10% |
2. transmitting distance: apparent 500m
3. Power supply: AC220V±10%, 50HZ / Rechargeable Battery (can continuously work for 6 hour or more after 3-hour charging
4. Dimension: 320*260*135mm
5. work temperature: -10℃-40℃
6. Relative humidity: ≤85% non condensing
7. Storage temperature: -20℃-50℃
8. Weight: approx 5.0KG
Packing list
| 1 | Host machine | 1 No | 6 | Charger | 1 No |
| 2 | Wireless module | 1 No | 7 | Print paper | 1 Roll |
| 3 | Air wire | 2 Nos | 8 | Use manual | 1 copy |
| 4. | Test cable | 1 set | 9 | Routine report | 1 copy |
| 5 | Fuse (0.1A) | 4 pcs |
