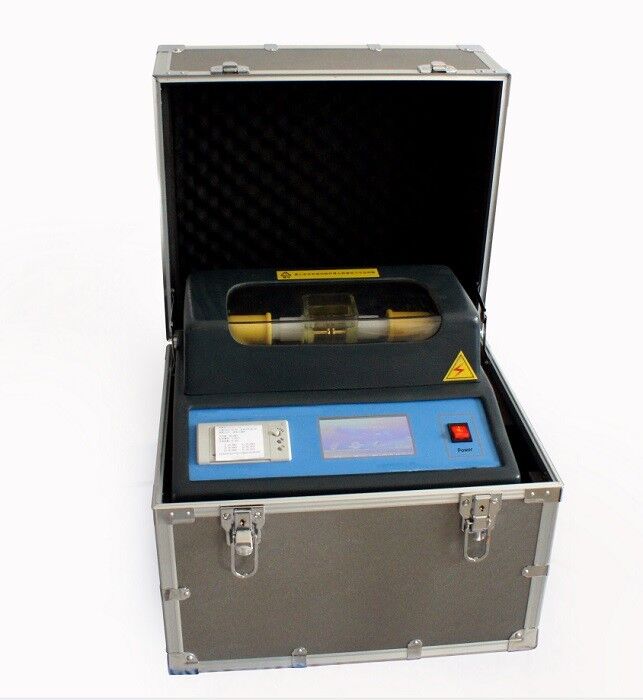

100KV Transformer Oil Dielectric Strength Tester LCD Screen
Product Summary
Insulation Oil Dielectric Strength Test Kit MCOT80 Features With microprocessor, automatically fulfill the test for oil circulation with a range of 0～80KV Large screen LCD display Automatically complete withstand-voltage test of oil after simple setting Can save breakdown voltage value (1 to 6 times...
Product Custom Attributes
Output Voltage:
80 Or 100KV Max
Accuracy:
3%
Distortion:
<3%
Display:
LCD
Highlight:
100KV Transformer Oil Dielectric Strength Tester
,3% Transformer Oil Dielectric Strength Tester
,LCD insulation resistance test meter
Basic Properties
Place of Origin:
China
Brand Name:
HNMC
Model Number:
MCOT80
Trading Properties
Minimum Order Quantity:
1
Price:
Negotiable
Packaging Details:
Composite Board package
Delivery Time:
20-25 days
Payment Terms:
T/T
Supply Ability:
30 sets per month
Product Description
Insulation Oil Dielectric Strength Test Kit MCOT80
Features
- With microprocessor, automatically fulfill the test for oil circulation with a range of 0～80KV
- Large screen LCD display
- Automatically complete withstand-voltage test of oil after simple setting
- Can save breakdown voltage value (1 to 6 times) and recurrent times
- With in-built thermal printer, which can print each breakdown and average voltage value
- Can save 100 pcs test results
- Can display current ambient temperature and humidity
- Adopt a single-chip microcomputer to boost the voltage at an even speed.
- Equipped with over-voltage, over-current and limit protections to ensure the safety of operators
- With the function of displaying the measured temperature and system clock.
- Communicate with computer with a standard RS232 interface
Applications
Testing of insulating liquids in transformers, bushings, switchgear, capacitors and hydraulics
Major Technical Index
| Item | Index |
| Output voltage | 0～80KV (100kv optional) |
| Voltage distortion rate | ＜3% |
| Voltage rising speed: | 0.5～5KV/S (adjustable) |
| Standing time: | 15min (adjustable) |
| Boosting interval | 5 min (adjustable) |
| Boosting frequency | :1～6 time(s) (optional) |
| Booster capacity: | 1.5KVA |
| Measuring accuracy: | ±3％ |
| Supply voltage | AC240V±10% 50Hz±1Hz |
| Power consumption: | 200W |
| Oil volume | 400 ml |
| Applicable temperature | 0℃～45℃ |
| Applicable humidity | ＜75%RH |
| Measuring accuracy: | ±3％ |
| Overall dimension | 465×385×425mm |
