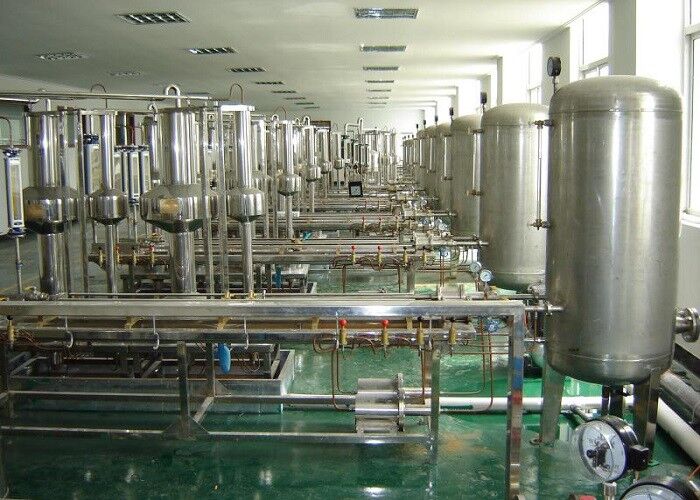

Serial Connection Water Meter Test Equipment Semi Automatic
Product Summary
DN15/25 8 meters serial connection semi-automatic water meter test bench Water meter test bench(Manual) Caliber 15-25 Model In series Test Size(mm) 4400*1860*2200 Number of Meter DN15×8,DN20×5,DN25×4, Single Glass Rotameter DN15/25/50/80 DN15/25 Vessel 10L/20L 100L/500L 10L/20L 100L/500L Class 0.20...
Product Custom Attributes
Test Meter Size:
DN15-25
Meter Positions:
8Nos
Operation Mode:
Semi-automatic
Accuracy:
0.2%
Size:
4400*1860*2200
Number Of Meter:
DN15×8,DN20×5,DN25×4,
Storage Tank:
3m³
Pressure Tank:
0.5m³
Highlight:
3m3 Water Meter Test Equipment
,DN25 Water Meter Test Equipment
,8 meters mte meter test equipment
Basic Properties
Place of Origin:
China
Brand Name:
HNMC
Model Number:
LJS15-25
Trading Properties
Minimum Order Quantity:
1
Price:
Negotiable
Packaging Details:
Wooden Package
Delivery Time:
4-8weeks
Payment Terms:
L/C, T/T, Western Union,
Supply Ability:
10 sets per month
Product Description
DN15/25 8 meters serial connection semi-automatic water meter test bench
| Water meter test bench(Manual) | |||
| Caliber | 15-25 | ||
| Model | In series | Test | |
| Size(mm) | 4400*1860*2200 | ||
| Number of Meter | DN15×8,DN20×5,DN25×4, | Single | |
| Glass Rotameter | DN15/25/50/80 | DN15/25 | |
| Vessel | 10L/20L 100L/500L | 10L/20L 100L/500L | |
| Class | 0.20% | 0.20% | |
| Flow Range | 0.016m³/h~40m³/h | 0.016m³/h~40m³/h | |
| Optional | |||
| Pump | Q=50m³/h H=50m N=15Kw | Q=50m³/h H=50m N=15Kw | |
| Storage Tank | 3m³ | 3m³ | |
| Pressure Tank | 0.5m³ | 0.5m³ | |
| Pressure-tight test | 0-2MPa | 0-2MPa | |
| Liquied level photoelectrical | DC5V,4 | DC5V,4 | |
| Controller of Photoelectric Sensors | Receive photoelectric signal and control valve | Receive photoelectric signal and control valve | |
DN15/25
8 meters serial connection semi-automatic water meter test bench
Configuration list
| Sr. | Item | specification | origin | Qty. |
| 1 | work capacitor and drainage bottom valve | 66L S stainless steel (2mm) | NINGBO | 1set |
| 2 | Glass rotameter | LZB-15S | NINGBO | 1pcs |
| LZB-25S | 1pcs | |||
| 3 | Meter holder | DN25 S=80mm stainless steel | MINGTAI | 1set |
| 4 | Straight pipe | DN15×8,DN20×6,DN25×5 meter straight pipe ≥2D,(wall thickness3.5mm) | MINGTAI | 1set |
| 5 | Working table and accessories | Working table rack, rack, connect pipe, flange, elbow bend etc. | MINGTAI | 1 set |
| 6 | High speed photography module | MTSX-1 | MINGTAI | 10 set |
| 7 | PC |
2.8G or better /1G/160G/ 20`` LCD screen |
HUNTKEY | 1 set |
| 8 | software | Quality testing method software | MINGTAI | 1 set |
| 9 | Control box | Exclusive use for quality testing method | MINGTAI | 1set |
| 10 | Communication controller | Exclusive use for quality testing method | MINGTAI | 1set |
| 11 | Steady flow device (filtration) | 500L | MINGTAI | 1set |
| 12 | Pressure sensor | 0－2.5MPa | MIKE | 2 set |
| 13 | Temperature sensor | 0－50℃ | MIKE | 1set |
| 14 | Pressure retaining valve components | P≥2MPa | MINGTAI | 1set |
| 15 | pump | Q=6.3m³/h H=50m N=3Kw | SOUTH | 1 set |
| 16 | tank | 1000L | MINGTAI | 1set |
| 17 | transducer | 3KW | MISUBISHI | 1 set |
| 18 | Air compressor | 0.05 m3/min-0.8 | AOTUSI | 1 set |
| 19 | Water supply pipe | Wall thickness 3.5mm or better | MINGTAI | 1 set |
