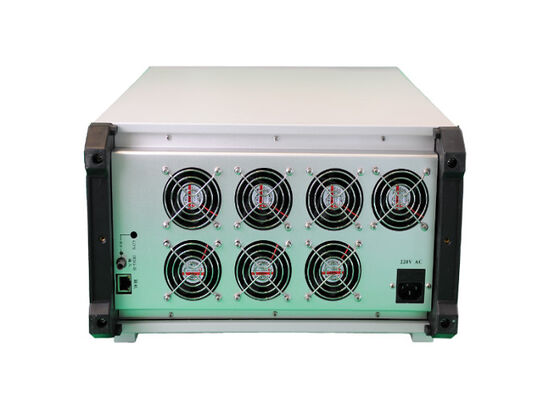

Light Weight 3 Phase Secondary Injection Test Set 4x300V
Product Summary
Protection Relay Test System MC3000A The powerful three-phase relay test set MC3000A is designed for multipurpose field test and commissioning application. All types of protection relays, including electro-mechanical, solid state and modern microprocessor based, can be easily tested with our ...
Product Custom Attributes
30A 4x300V 3 Phase Secondary Injection Test Set
,4x300V GPS 3 Phase Secondary Injection Test Set
,4x300V relay testing equipment
Basic Properties
Trading Properties
Product Description
Protection Relay Test System MC3000A
The powerful three-phase relay test set MC3000A is designed for multipurpose field test and commissioning application. All types of protection relays, including electro-mechanical, solid state and modern microprocessor based, can be easily tested with our automatic relay testing software. High accurate voltage and current source makes it easy to test energy meeters and transducers too.
Six currents and four voltages
High power and high accuracy
Advanced modular Plug-in structure
Full automated testing using PC control software
End to end test with GPS or IRIG-B
Light weight, easy to use 3 years free warranty
Specifications
Six Phase Protection Test System
| Voltage | |
| Range | 4 x 300V / 100VA |
| Accuracy | error < 0.05 % rd.+ 0.01 % rg. typ. |
| Output time | continuous |
| Current | |
| Range | 6 x 30A / 450VA |
| Accuracy | error < 0.1 % rd. + 0.02 % rg. typ. |
| Output time | > 15 Sec. at 30A |
| Frequency | |
| Range | DC, 0.001Hz~1000Hz |
| Accuracy | ±1ppm |
| Resolution | 0.001Hz |
| Others | |
| Auxillary DC supply | 0-300V |
| Binary inputs | 8 |
| Binary outputs | 4 |
| Time synchronization | GPS, IRIG-B |
| Weight | ≤16.5kg |
Technical service
Much experienced technical team will provide strong technical support for your market development. We can provide support on customization, maintenance, device design, construction scheme, design optimization, and product development.
Quality control
We have professional quality control team. Our quality control covers materials, production procedure, finished product inspection, final inspection before loading, inspection report.
