9x30A Protection Relay Test Equipment , Multi Phase Protection Relay Tester
Product Summary
Multi-Phases Protection Relay Tester The MC3000C is a perfect protection system testing tool and power system simulator. Comparing to MC3000A the MC3000C has 9 channel current sources, which makes 3 winding tranformer protection system testing very simple. People can also make full use of its 4 ...
Product Custom Attributes
9x30A Protection Relay Test Equipment
,9x30A GPS Protection Relay Test Equipment
,9x30A Multi Phase Protection Relay Tester
Basic Properties
Trading Properties
Product Description

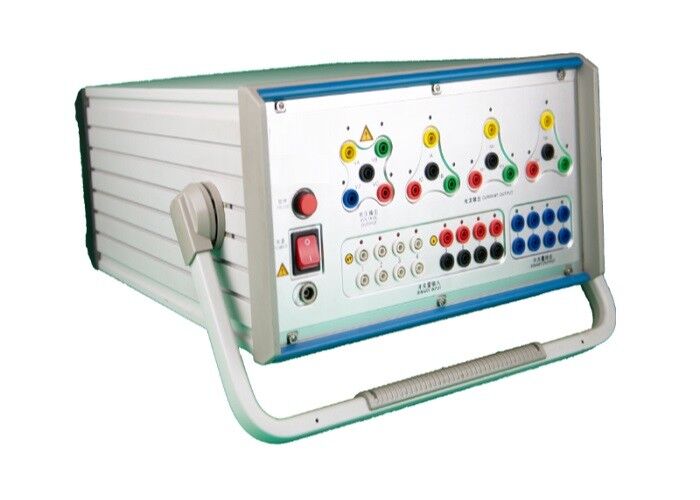

Multi-Phases Protection Relay Tester
The MC3000C is a perfect protection system testing tool and power system simulator. Comparing to MC3000A the MC3000C has 9 channel current sources, which makes 3 winding tranformer protection system testing very simple. People can also make full use of its 4 voltage and 9 current channels to do more power system simulation works.
Nine currents and four voltages
High power and high accuracy
Advanced modular Plug-in structure
Full automated testing using PC control software
End to end test with GPS or IRIG-B
Light weight, easy to use
3 years free warranty
Specifications
| Voltage | |
| Range | 4 x 300V / 100VA |
| Accuracy | error < 0.05 % rd.+ 0.01 % rg. typ. |
| Output time | continuous |
| Current | |
| Range | 9 x 30A / 450VA |
| Accuracy | error < 0.1 % rd. + 0.02 % rg. typ. |
| Output time | > 15 Sec. at 30A |
| Frequency | |
| Range | DC, 0.001Hz~1000Hz |
| Accuracy | ±1ppm |
| Resolution | 0.001Hz |
| Others | |
| Auxillary DC supply | 0-300V |
| Binary inputs | 8 |
| Binary outputs | 4 |
| Time synchronization | GPS, IRIG-B |
| Weight | ≤17.5kg |
Support on sales
Welcome the inquires from all over the worlds. We will provide our best solution with good quality with competitive prices according to your requirement.
Installation and training
For any projects, we can send technicians to help you with installation, and training your workers if necessary. We provide detailed user manual together with shipment for your learning.
