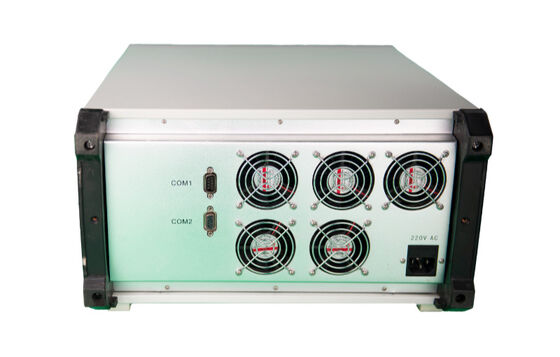

0.05% Protection Relay Test Equipment , Portable Protection Relay Test Kit
Product Summary
Portable Universal Protection Relay Test Equipment MC300 is an economical and portable relay tester for substation 3-phase testing. The 3 current channels (each 40A max) and 4 voltage channels (each 300V max) makes it possible to satisfy the needs for all kinds of testing applications in electrical ...
Product Custom Attributes
3x30A Protection Relay Test Equipment
,0.05% Protection Relay Test Equipment
,Portable Protection Relay Test Kit
Basic Properties
Trading Properties
Product Description

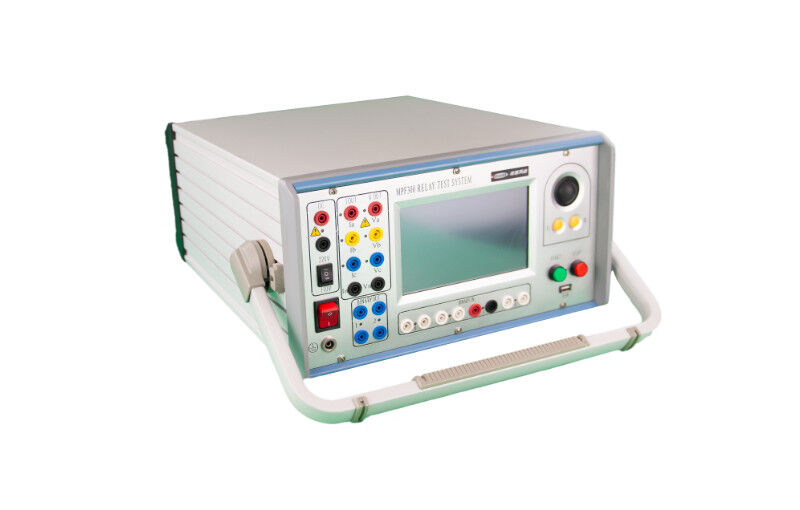

Portable Universal Protection Relay Test Equipment
MC300 is an economical and portable relay tester for substation 3-phase testing.
The 3 current channels (each 40A max) and 4 voltage channels (each 300V max)
makes it possible to satisfy the needs for all kinds of testing applications in electrical
distribution substions, power plants and industrial sectors. With its touch screen
and in-built test modules user can perform manual and automatic test easily.
- 3 Current and 4 voltages
- Modern modular Plug-in structure
- Touch screen operation
- Convenient to use with in-built test modules
- Linear amplifiers
- With verload/over temperature/short circuit protection
- Audio visual overload, contact status, short circuit, hardware protection indication
Specifications
| Voltage | |
| Output Range | 4 x 300V / 100VA |
| Accuracy | < 0.05 % rd.+ 0.01 % rg. typ. |
| Output time | continuous |
| Current | |
| Output Range | 3 x 30A / 350VA |
| Accuracy | < 0.1 % rd. + 0.02 % rg. typ. |
| Output time | > 15 Sec. At40A |
| Frequency | |
| Output Range | DC, 0.001Hz~1000Hz |
| Accuracy | ±1ppm |
| Resolution | 0.001Hz |
| Others | |
| Auxillary DC supply | 110V/220V |
| Binary inputs | 4 |
| Binary outputs | 2 |
| Control | local |
| Weight | ≤11.5kg |
