0.1dB Sweep Frequency Response Analyzer Touch Screen Inbuilt Thermal Printer
Product Summary
Portable Frequency Response Analyzer MCFRA01 Main Feature 1) Adopting advanced technical of DDS 2) Using the high speed and advanced microprocessor to design 3) Using double channels of AD chip of 16 bits 4) With 7” LCD touch screen and the brightness can be adjusted 5) With built-in thermal printer ...
Product Custom Attributes
Display:
LCD
Operation:
By Touch Screen
Test Range:
(-100dB) – (+20dB)
Test Accuracy:
0.1dB
Data Store:
120 Groups
Signal Input Impedance:
>1M Ω
Highlight:
LCD Sweep Frequency Response Analyzer
,0.1dB Sweep Frequency Response Analyzer
,DDS frequency response analyser
Basic Properties
Place of Origin:
China
Brand Name:
HNMC
Model Number:
MCFRA01
Trading Properties
Minimum Order Quantity:
1 pc
Price:
Negotiable
Packaging Details:
Carton package
Delivery Time:
20-25 Days
Payment Terms:
T/T
Supply Ability:
200 per month
Product Description

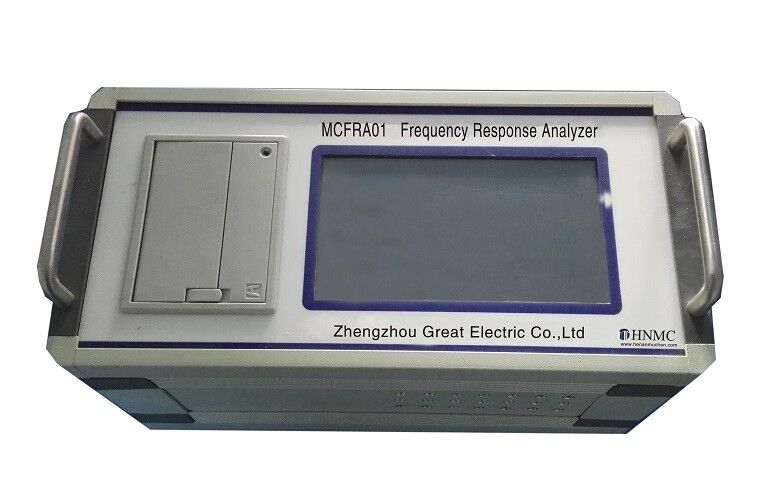

Portable Frequency Response Analyzer MCFRA01
Main Feature
1) Adopting advanced technical of DDS
2) Using the high speed and advanced microprocessor to design
3) Using double channels of AD chip of 16 bits
4) With 7” LCD touch screen and the brightness can be adjusted
5) With built-in thermal printer
6) Can store 120 groups of data, which can be browsed on display or upload to the PC
7) With PC software to upload data test, analyze data, print data, or create word file
8) Using USB2.0 to connect to the device
9) Dimension:31cm X 15cm X 15cm
10) Weight:4.0KG
Technical Index
| Item | Technical Index | |
| Two different sweep modes | Linear sweep | 0.5KHZ-1MHZ; interval 0.5KHZ / 2000 dots |
| Section sweep |
50HZ-100HZ; interval 2HZ /25 dots 100HZ-1KHZ; interval 20HZ /45 dots 1KHZ -10KHZ; interval 50HZ/180 dots 10KHZ-100KHZ; interval 0.2KHZ / 450 dots 100KHZ – 500KHZ; interval 0.5KHZ/800 dots 500KHZ – 1000KHZ; interval 1KHZ /500 dots |
|
| Test range: | (-100dB) – (+20dB) | |
| Test accuracy: | 0.1dB | |
| Frequency accuracy: | <0.01% | |
| Signal input impedance | >1M Ω | |
| Signal output impedance: | 50 Ω | |
| Repeat test | 99.5% | |
