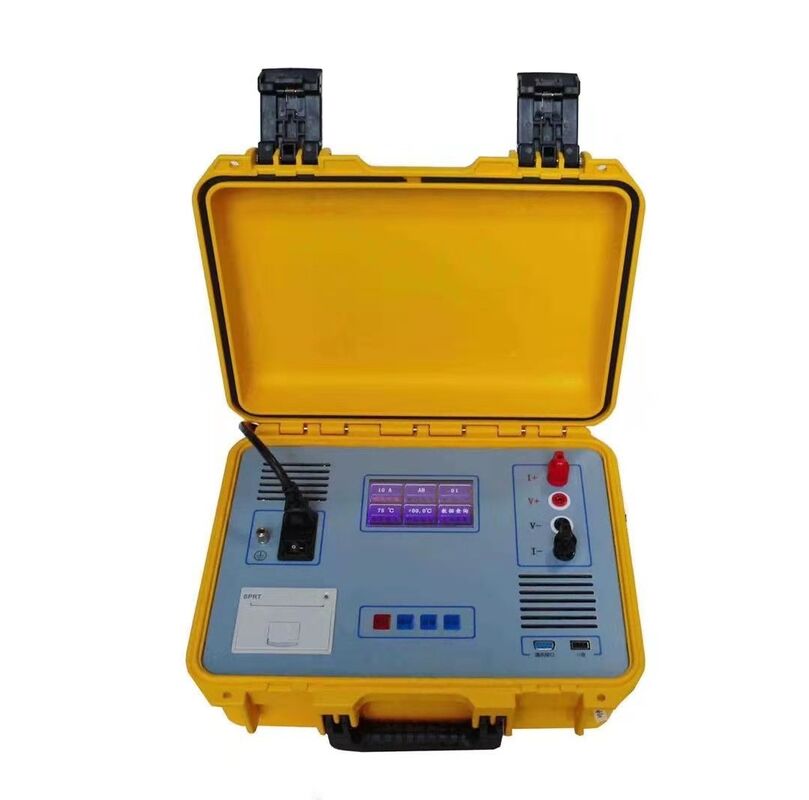

Portable Transformer DC Resistance Tester ZSR10B
Main Features
1. This product is suitable for 10kV and 35kV distribution transformer, transformer, motor, generator and
other inductive load test, as well as wire, relay, switch contact, etc.
2. It has the function of temperature conversion, which can be converted to the resistance value under
different temperatures according to customer requirements, so as to facilitate data comparison.
3. It can store 1000 groups of test data and real-time test time.
4. With micro printer, it can print test data in real time.
5. With discharge sound alarm, power overheating, voltage reverse connection and other protection functions.
6. 480x272 lattice 65K true color LCD, high brightness, clear display under strong light.
7. The on load switch can be switched directly in the measurement state, and the instrument can refresh
the data automatically without reset operation.
8. It is equipped with RS232 interface and U disk interface, which is convenient for communication and data storage.
9. It has 6 current gears and automatic current gears, which can be automatically selected according to the load.
10. Injection molding case, waterproof, dustproof, shock absorption, etc.
11. Large capacity lithium battery (16.8v/7800mah) is optional.
Technical Index
| Item | Technical indexes and parameters | Remarks |
| Test current | Automatic,<20mA,40mA,200mA,1A,5A,10A | |
| Measurement range | 10A:0.2mΩ～800mΩ 5A:2mΩ～2Ω 1A:5mΩ～10Ω 200mA:100mΩ～50Ω 40mA:500mΩ～250Ω | Accuracy:±(0.2%+2 bytes) |
| <20mA:50Ω～100KΩ | Accuracy:±(0.5%+2 bytes) | |
| Minimum resolution | 0.1μΩ | |
| Display | Liquid crystal display | The resistance shows that the significant digits are 4 digits |
| Data storage | 1000 pcs records | |
| Work environment | Relative humidity: <80%RH No condensation | Ambient temperature: -20℃～40℃ |
| Power Supply | AC 220V±10V,50Hz±1 Hz | Safety management 2A |
| Maximum power consumption | 200W | Optional battery 16.8V/7800mAH) |
| Dimensions | 360*290*170(mm) | |
| Weight | 6.45KG |
