750V Transformer Test Equipment , Portable Transformer Loss Tester
Product Summary
Portable Transformer Test Equipment-Transformer Loss Test Set MCTL-100 Main Features 1) Can measure: no- load current (excitation current); no-load loss (core loss); short circuit voltage; short circuit loss (cooper loss); zero-sequence impedance 2) Can automatically adjust: distortion of wave form; ...
Product Custom Attributes
Voltage Measure Range:
0-750V
Current Measure Range:
0-100A
Accuracy:
0.2%
Power Supply:
85-265V
Display:
LCD
Weight:
4KGS
Communication Port:
USB, RS232
Application:
Worksite, Lab
Highlight:
750V Transformer Test Equipment
,RS232 Transformer Test Equipment
,Portable Transformer Loss Tester
Basic Properties
Place of Origin:
China
Brand Name:
HNMC
Model Number:
MCTL-100
Trading Properties
Minimum Order Quantity:
1 pc
Price:
Negotiable
Packaging Details:
Carton package
Delivery Time:
20-25 Days
Supply Ability:
200 per month
Product Description

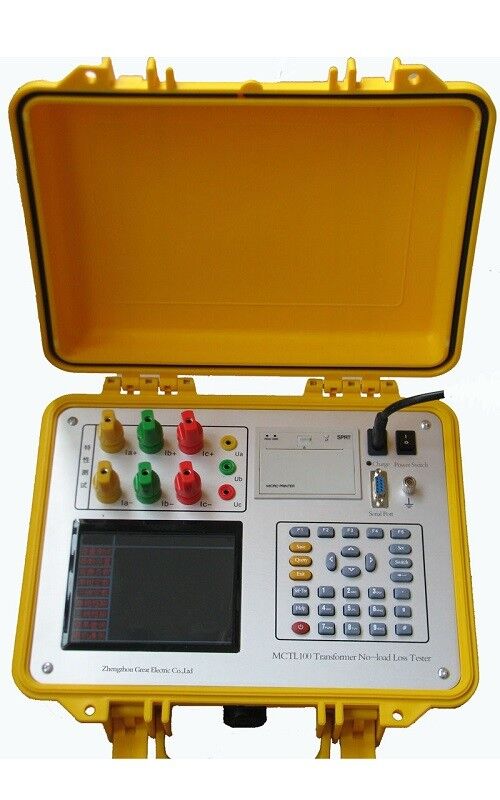

Portable Transformer Test Equipment-Transformer Loss Test Set MCTL-100
Main Features
1) Can measure: no- load current (excitation current); no-load loss (core loss); short circuit voltage;
short circuit loss (cooper loss); zero-sequence impedance
2) Can automatically adjust: distortion of wave form; temperature; voltage (no-load test under non-rated voltage);
current (short circuit test under non-rated current); and Input adjusting data according to the type of the transformer,
the instrument will calculate out results after adjust
3) Can connect external CT and PT to extend the measure range.
4) Wide voltage & current test range: maximum voltage test upto 750V without needing to switch range; and current
test can be upto 100A
5) Large LCD screen display, HMI, touching board and friendly operating
6) 232 USB connect external printer to print results. RS232 connector can upload data
Technical Index
| Item | Technical Index | ||
| Voltage measure range | 0~750V | ||
| Current measure range | 0~100A,auto ranging | ||
|
Accuracy |
Voltage ,Current ,Frequency | ±0.2% | |
| Power |
±0.5%(CosΦ>0.1), ±1.0%(0.02<CosΦ<0.1) |
||
| Operating temperature | －10℃~ +40℃ | ||
| Power supply | AC85V~265V | ||
|
Insulation |
Insulation resistance between voltage/current input terminal and housing: | ≥100MΩ | |
| Power Frequency Withstand voltage between power supply input and housing |
2KV (effective value), one minute
|
||
| Dimension | 35cm×26cm×13cm | ||
| Weight | 4kg | ||
