100K Ohms Transformer Test Equipment Bluetooth Communication
Product Summary
Portable Transformer DC Resistance Tester ZSR10A Main Features 1. the instrument can use Android mobile phone or tablet, pay attention to WeChat official account, Download APP, control software through special software, test data storage and upload, and facilitate access.2. The maximum output ...
Product Custom Attributes
Resistance Test Range:
0.5mΩ～100KΩ
Current Test Range:
Up To 10A
Resolution:
0.1μΩ
Data Save:
1000group
Operation:
Touch Screen
Application:
Worksite, Lab
Highlight:
100K OhmsTransformer Test Equipment
,lab Transformer Test Equipment
,10A dc resistance tester
Basic Properties
Place of Origin:
China
Brand Name:
HNMC
Model Number:
ZSR10A
Trading Properties
Minimum Order Quantity:
1 pc
Price:
Negotiable
Packaging Details:
Carton package
Delivery Time:
20-25 Days
Payment Terms:
L/C, T/T
Supply Ability:
200 Pcs per month
Product Description

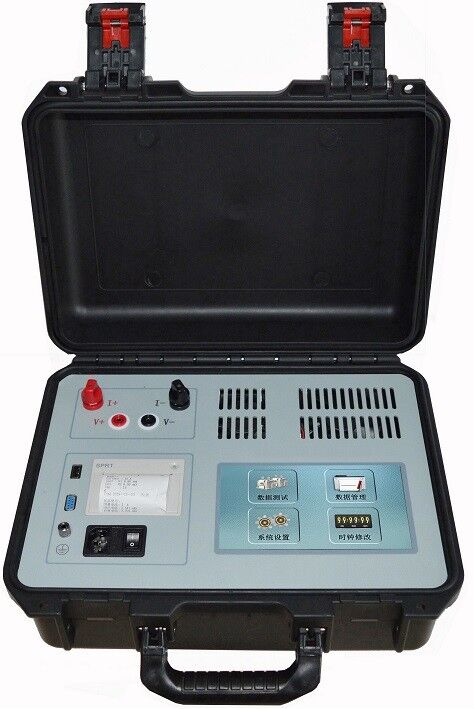

Portable Transformer DC Resistance Tester ZSR10A
Main Features
1. the instrument can use Android mobile phone or tablet, pay attention to WeChat official account, Download APP, control software through special software, test data storage and upload, and facilitate access.
2. The maximum output voltage of the instrument is 24 V, which is convenient to select a larger test current when the resistance value is high, so as to improve the test speed
3. The instrument adopts new power supply technology, with many current ranges and wide measuring range. It can automatically select the current according to the load. It is suitable for DC resistance measurement of small and medium-sized transformers and voltage transformers.
4. It has many protection functions, such as back EMF impact, wire breaking and power-off during the test, overheat of power supply and so on. It can reliably protect the impact of back EMF on the instrument, and give an alarm simultaneously.
5. It has the function of any temperature conversion of copper and aluminum materials, touch to input any winding temperature and conversion temperature.
6. Intelligent power management technology, the instrument works in the minimum power state, effective energy saving, reduce heating.
7. Seven inch high brightness touch color LCD, clear display under strong light, full touch screen operation, free switching between Chinese and English.
8. The instrument has its own calendar clock and power-off storage, which can store 1000 groups of test data and can be consulted at any time.
9. The instrument has Bluetooth communication, RS232 communication and USB interface for computer communication and USB data storage.
10. The measurement results can be printed .
Technical Index
| Item | specification | Remark |
| Current | AUTO,<20mA,40mA, | |
| 0.5mΩ～0.8Ω (10A) | ±(0.2%+2字) |
| 100Ω-100KΩ (<20mA) | ±(0.5%+2字) | |
| Resolution | 0.1μΩ | |
| Display | 7 inch touch LCD | Resistance display 4 digits effective value |
| Data save | 1000 group | |
| Work condition | Ambient temperature:0℃～40℃ Relative humidity: <90%RH,non condensing | |
| Power supply | AC 220V±10V,50Hz±1 Hz | fuse 2A |
| Consumption | 200W | |
| Dimension | 360*290*170(mm) | |
| Weight | Host Machine :6 KG cable box:5 KG |
