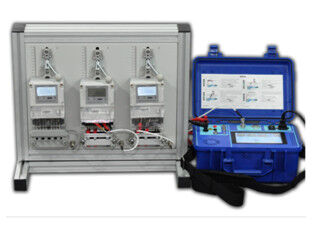

0.1 Class Portable Meter Test Equipment , 100A Single Phase Tester
Product Summary
Single Phase Portable Meter Test System MCCS1.1 1) Small size and weight 2) Used in lab or worksite 3) LCD display 4) Accuracy class: 0.1 (direct mode); 0.2 (clamp mode) 5) Measuring range: upto 300V /100A (direct mode) 6) Power and Energy test, Demand test, Error test, Dial test, Start, Creep test ...
Product Custom Attributes
0.1 Class Portable Meter Test Equipment
,300V Portable Meter Test Equipment
,100A Single Phase Tester
Basic Properties
Trading Properties
Product Description
Single Phase Portable Meter Test System MCCS1.1
1) Small size and weight
2) Used in lab or worksite
3) LCD display
4) Accuracy class: 0.1 (direct mode); 0.2 (clamp mode)
5) Measuring range: upto 300V /100A (direct mode)
6) Power and Energy test, Demand test, Error test, Dial test, Start, Creep test
7) Support RS232 communication with PC to upload the test data
Technical Index
| Accuracy Class | |
| Direct current mode | 0.1 |
| Clamp-on CT mode | 0.2 |
| Clamp-on CT range | |
| Optional | 10…..300A…more (optional) |
| Standard meter measure range | |
| Current | 10mA-100A |
| Voltage | 1-300V |
| Resolution | Six digits valid value |
| Power source | |
| Output voltage range/resolution | 1-288V / better than 0.01% |
| Output current range/resolution | 10mA-120A / better than 0.01% |
| Output power | Maximum 100VA (current circuit) & 50VA (voltage circuit) |
| Output stability | ≤0.05% /120s (voltage,current,power) |
| Waveform distortion | ≤0.5% |
| Frequency range & resolution | 45-65HZ & 0.01HZ |
| Phase angle range & adjust resolution | 0-360 o / 0.01° |
| Other parameters | |
| Power supply |
AC 220V±10%,50/60HZ |
| Power consumption | Max 200VA |
| Size & Weight | 361*236*163mm & 7kg |
Features
1. Standard meter integrated with voltage and current source
2. 7” touch screen LCD; In-built ARM system
3. Output with high stability and low distortion
4. With enough protection: open circuit, short circuit, over load, and etc
5. Can do below test: start test, creep test, basic error test, standard deviation tester, dial test, etc..
6. Can do voltage dip and interrupt test
7. 2-21 times harmonic; can set amplitude and phase; and do harmonic analyze and get waveform
8. With self-test function namely can perform monitoring of output voltage, output current, output phase,
power factor, output frequency, output harmonic waveform and power output stability and etc
9. Four working mode:
-Portable single phase meter test equipment (optional: three position mount rack)
-Portable single phase reference standard meter
-Portable single phase meter tester with current source
-Standard meter which can give output impulse for calibration of the unit.
