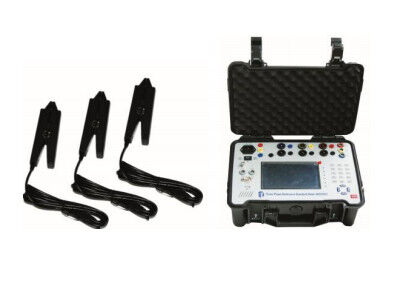

5A Portable Energy Meter Test Equipment High Resolution
Product Summary
Portable Meter Test Equipment Three Phase Reference Standard Meter MCST01C Technical Parameters Current Measure Direct mode range 1mA-120A Clamp-on CT range selectable 5A, 100A, 300A…...2000A (optional) Rogowski Coil mode selectable 3000A…5000A…10000A (optional) Accuracy 0.05% (10mA-120A) 0.2% (5A...
Product Custom Attributes
5A Portable Energy Meter Test Equipment
,1mA Portable Energy Meter Test Equipment
,0.2% energy meter testing
Basic Properties
Trading Properties
Product Description
Portable Meter Test Equipment Three Phase Reference Standard Meter MCST01C
Technical Parameters
| Current Measure | |
| Direct mode range | 1mA-120A |
| Clamp-on CT range selectable | 5A, 100A, 300A…...2000A (optional) |
| Rogowski Coil mode selectable | 3000A…5000A…10000A (optional) |
| Accuracy |
0.05% (10mA-120A) 0.2% (5A,100A,300A…2000A) 1% (3000A,5000A,10000A) |
| Resolution | High resolution, Six digits valid value |
| Voltage Measure | |
| Range | 1-576V, maximum can be 600V |
| Accuracy | 0.05% (30-600V) |
| Resolution | High resolution, Six digits valid value |
| Power/Energy Measure | |
| Accuracy (Active/apparent) |
0.05% (10mA-120A) 0.2% (5A,100A,300A…2000A) 1% (3000A,5000A,10000A) |
| Accuracy (reactive) |
0.1% (10mA-120A) 0.4% (5A,100A,300A…2000A) 2% (3000A,5000A,10000A) |
| Resolution | High resolution, Six digits valid value |
| Frequency measure | |
| Range | 40-70HZ |
| Accuracy & Resolution | ±0.01HZ & 0.001HZ |
| Phase Angle Measure | |
| Range | 0-360 deg. (0 - ±180deg.) |
| Accuracy | ±0.05°(current input>10%Ib) |
| Resolution | 0.001° |
| Power factor range | 0-1 |
| CT/VT Secondary load test | |
| Accuracy | ＜±1% |
| Other parameters | |
| Power supply |
Auxiliary: AC 45-450V Power supply from test circuit Battery (optional) |
| Power consumption | <13VA |
| Weight | 1.8-2.5KGS |
General introduction
1) Large current input measure
2) Use current connectors from MC switzerland
3) Stable performance and reliable accuracy ensurance
4) Direct mode current: 1mA-120A, inbuilt high accuracy CT
5) IP65 protection degree
6) Accuracy class: 0.1, 0.05, 0.02, optional
7) Touch Screen operation and LCD display 7”
8) Portable black box enclosure, convenient for carrying
9) Testing device set include:
main device, optical sensor, MC 120A current cables & connectors,
small current cables, Voltage test cables, clamp-on CT (optional), Rogowski Flexible coil (optional),
PC communication cable, power cord, PC software, etc.
10) Widely used in lab or worksite
11) Also provide snap switch to get impulse when the meter mounted so highly and not easy to touch
12) Suppor battery power supply mode and one time charging can support continous working 8 hours
13) High quality and competitive price, it compete with Europe famous brand.
14) It support remotely firmware update once needed.
Features
1) Suitable for use in worksite and also in lab
2) Suitable for testing different single and three phase mechanical & electronic meters
3) Test & display of meter basic error, current, voltage, frequency, power, energy, power factor, harmonics, etc.
4) Display harmonics, spectrogram, vector diagram,
waveform, phase sequence and etc
5) Demand test, CT ratio test, Dial test, Polarity test, Real-burden test, CT secondary load test,
PT secondary load test
6) Harmonic test until 51 times
7) Test and show of ambient temperature & humidity
8) Identification of various wrong wiring
9) Big data storage space
10) Support RS232/USB port
Display below Parameters
1) Phase Voltage, line voltage
2) Phase current
3) Each phase Active power/energy, Reactive Power/energy, Apparent Power/energy
4) Total Three phases Active power/energy, Reactive Power/energy, Apparent Power/energy
5) Time sequence
.....etc
