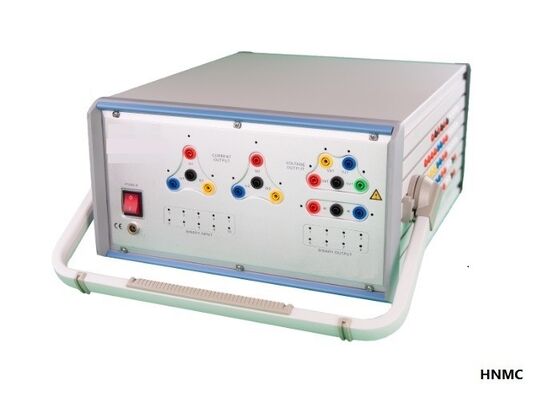

Touch Screen Control Protective Relay Tester IEC61850
Product Summary
Advanced Multifunctional Relay Test Set The MC3000F is the all-in-one test system for protection relay testing and commissioning applications. In addition to the ability of testing conventional protective relay with analog voltage and current outputs, the MC3000F can also test IEC61850 complied ...
Product Custom Attributes
IEC61850 Protective Relay Tester
,0.02% Protective Relay Tester
,4x300V relay testing services
Basic Properties
Trading Properties
Product Description
Advanced Multifunctional Relay Test Set
The MC3000F is the all-in-one test system for protection relay testing and commissioning applications.
In addition to the ability of testing conventional protective relay with analog voltage and current outputs,
the MC3000F can also test IEC61850 complied digital protection devices and systems, such as simulating
/subscripting GOOSE messages, publishing Sampled Values. The 12 low level analog output are provided
for stimulating devices with low level inputs.
Relay protection microcomputer test device plays a key role in operating electricity power systems
reliably and safely. It is the testing device used in professional field of microcomputer protection,
relay protection, excitation measurement, fault recorder.
Specifications
| Voltage | |
| Range | 4 x 300V / 100VA |
| Accuracy | error < 0.05 % rd.+ 0.01 % rg. typ. |
| Output time | continuous |
| Current | |
| Range | 6 x 30A / 450VA |
| Accuracy | error < 0.1 % rd. + 0.02 % rg. typ. |
| Output time | > 15 Sec. at 30A |
| Frequency | |
| Range | DC, 0.001Hz~1000Hz |
| Accuracy | ±1ppm |
| Resolution | 0.001Hz |
| Others | |
| Auxillary DC supply | 0-300V |
| Binary inputs | 8 |
| Binary outputs | 4 |
| Low level outputs | 12 |
| Time synchronization | GPS, IRIG-B |
| Weight | ≤16.5kg |
| IEC 61850 | |
| GOOSE simulation/subscription | |
| Sampled Value publishing | |
| Support FT3 protocol | |
