RS232 Electrical Test Meter Calibration , 65HZ Energy Meter Test Equipment
Product Summary
Portable Three Phase Reference Standard Meter MCST01 Technical Index Current Test Range Direct mode: 1mA-10A , 120% adjustable Clamp-on CT mode: 5A, 10A, 100A,200A…...3000A (optional) Voltage test range: 30-576V Harmonics test: up to 51 times Burden test/voltage range: 0-5V Frequency Range: 45-65HZ ...
Product Custom Attributes
RS232 Electrical Test Meter Calibration
,0.2% Electrical Test Meter Calibration
,65HZ Energy Meter Test Equipment
Basic Properties
Trading Properties
Product Description

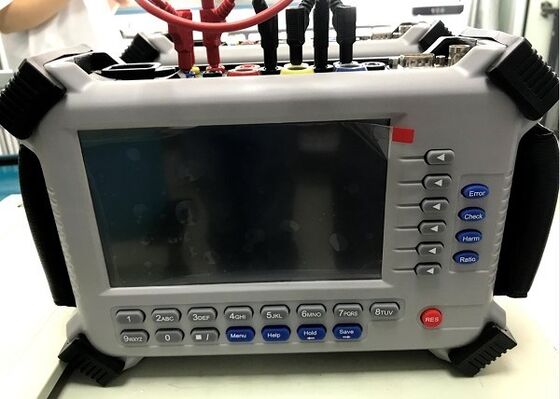

Portable Three Phase Reference Standard Meter MCST01
Technical Index
- Current Test Range
Direct mode: 1mA-10A , 120% adjustable
Clamp-on CT mode: 5A, 10A, 100A,200A…...3000A (optional)
- Voltage test range: 30-576V
- Harmonics test: up to 51 times
- Burden test/voltage range: 0-5V
- Frequency Range: 45-65HZ
- Phase angle range: 0-360 deg.
- Power factor range: 0 to 1
- Accuracy class & Display Resolution
| Item | Accuracy class (option 1) | Accuracy class (option 2) | Resolution | ||
| Direct mode | Clamp mode | Direct mode | Clamp mode | ||
| Voltage | 0.05% | 0.05% | 0.02% | 0.02% | 0.001 |
| Current | 0.05% | 0.2% | 0.02% | 0.2% |
0.0001(1A) 0.001(5A) 0.01(100A) 0.1(1000A) |
| Active, Apparent Power/Energy | 0.05% | 0.2% | 0.02% | 0.2% | 00.0000(can be better) |
| Reactive Power/Energy | 0.1% | 0.4% | 0.05% | 0.4% | |
| Frequency | ±0.01HZ | 0.001HZ | |||
| Phase Angle | ±0.05°(current input>10%Ib) | 0.001° | |||
| Burden | ＜±1% | 0.000 | |||
| Error | 0.001 | ||||
| Inst.Load(kW/kVAr/Kva…) | 0.000 | ||||
Features
1) Used in lab or worksite
2) 7” LCD display & high resolution; Touch Screen operation
3) Operation by APP software on mobile phone or tablet (Optional)
4) GPS/GPRS module (optional), data can be sent to server (optional)
5) Two kinds of operation mode (auto & manual)
6) Test all kinds of electronics/electromechanical single and three phase meters
7) Test and display basic error, voltage, current, power, power factor, energy, harmonics,frequency, etc
8) Also display phase voltage, line voltage, line current, each phase/total power (P.Q.S),
each phase/total energy (active, reactive, apparent), phase sequence, vector diagram, waveform,
harmonics, distortion, spectrogram, time & date and etc
9) CT/PT ratio can be multiple with meter constant while doing dial test
10) Dial test/Demand Test/CT ratio test/polarity test/CT secondary load test/PT secondary load test
11) Store total energy including harmonics
12) Identification of incorrect wiring & connections
13) Over current/Over voltage/Low voltage/Missing current indications
14) Missing Voltage/Reverse current/Phase sequence
15) Wiring & correct association of voltage & current
17) Optical sensor with clamp or attaching disc to hold & count LED/LCD signal pulses
18) Snap switch to be used as an alternative of scanner/sensor head
19) Save 1000pcs test records
20) PC software for uploading test data then analyze then generate report
21) Support RS232/USB port
22) Power supply: 45-450V and battery (optional) for continuous working 8 hours
