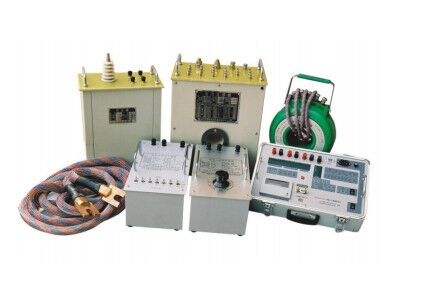

0.05S Class CT PT Test Equipment With Auto Protection
Product Summary
Portable CT PT Test Equipment System HEW-15 1) Can test error, impedance and admittance of CT & PT 2) Fast test speed and accurate data 3) With auto protection for polarity reverse connection, indication of wrong wiring & error beyond range 4) Auto save test data, and print in local test site, also ...
Product Custom Attributes
worksite 0.05S CT PT Test Equipment
,worksite CT PT Test Equipment
,5000A worksite Portable Test Equipment
Basic Properties
Trading Properties
Product Description
Portable CT PT Test Equipment System HEW-15
1) Can test error, impedance and admittance of CT & PT
2) Fast test speed and accurate data
3) With auto protection for polarity reverse connection, indication of wrong wiring & error beyond range
4) Auto save test data, and print in local test site, also can upload to PC
5) Voltage regulator: AC 220V+/-10% input
HEW-2000W Digital Transformer Tester
| Rated current &voltage | 5A,5A(S), 1A, 150V, 100V, 110/√3V, 100/√3V, 100/3V etc |
| Measuring Range | |
| Ratio error | 0.001%-19.99% |
| Phase error | ±0.001' ~ ±999.91' |
| Impedance | 0.001Ω~ 19.99Ω. Minimum resolution: 0.001Ω |
| Admittance | 0.001 ms ~ 19.99ms. Minimum resolution:0.001 ms |
| Power consumption | < 20VA |
| Rated frequency | 50 or 60HZ |
HL50-14 Standard Current Transformer
| Rated primary current(A) | 5-5000A |
| Rated secondary current | 5A,1A |
| Accuracy class | 0.02% or 0.05S% |
| Rated secondary load | 0.2 ohm |
| Frequency | 50HZ |
| Operating Range | 1%--120% |
SZ5 Current Generator
Main Technical Parameter
| Products Description: | Current Generator |
| Products Model: | SLQ-15KVA |
| Input Voltage: | AC 0-250V |
| Output Current: | AC 0-5000A |
| Rated Capacity: | 15kVA |
| Rated Input Current: | AC 60A |
| Frequency: | 50Hz |
| Current Output Model: |
Fixed terminal at current is 50A, 200A, 500A Through-hole connection at current is 500A-5000A |
| Products Shape: | Stainless Steel Box |
| Working condition: | 0 - 40ºC, RH ≤ 90% |
CT burden box
| Rated Current | 5A or 1A (optional) |
| Operating Range | 1%--120% |
| Rated load (VA) |
CosФ = 0.8: 2.5, 3.75, 5, 6.25, 7.5, 10, 12.5, 15, 20, 25, 30, 40, 50, 60 VA or more options CosФ = 1.0: 2.5, 3.75, 5, 6.25, 7.5, 10 VA or more options |
| Rate Frequency | 50Hz |
| Accuracy Class | ±3% |
VT burden Box
| Rated voltage | 100V, 100/√3V or more options |
| Operation Range | 20%--120% |
| Rated load | 1.25VA, 2.5VA, 5VA, 10VA,20VA, 40VA, 80VA (Total load:158.75 VA) or more option |
| Fundamental error | ±3% |
| Power factor | COSФ=0.8 |
| Rated Frequency | 50Hz |
HJS63-18 Standard PT (with Voltage Generator)
Main Technical Parameter
| Products Description: | Standard Voltage Transformer (with Voltage Generator) |
| Products Model: | HJS-35G3 |
| Rated Primary Voltage: |
6kV, 10kV, 22kV, 35kV, 38.5kV 6/√3kV, 10/√3kV, 22/√3kV, 35/√3kV |
| Rated Secondary Voltage: | 110V, 110/√3V, 100V, 100/√3V |
|
Rated Voltage Ratio: |
6/0.11kV, 6/√3/0.11/√3kV, 6/0.1kV, 6/√3/0.1/√3kV 10/0.11kV, 10/√3/0.11/√3kV, 10/0.1kV, 10/√3/0.1/√3kV 22/0.11kV, 22/√3/0.11/√3kV, 22/0.1kV, 22/√3/0.1/√3kV 35/0.11kV, 35/√3/0.11/√3kV, 35/0.1kV, 35/√3/0.1/√3kV |
| Accuracy Class: | 0.05S%,0.02%, 0.01% ,(optional) |
| Rated Secondary Burden: | 0.2VA(110V, 100V), 0.07VA(110/√3V, 100/√3V) |
| Power Factor: | COSΦ=1.0 |
| Operating Range: | (20%-120%). Un |
| Frequency: | 50Hz |
| Insulation: | Epoxy resin casting |
| Product Structure: | With Voltage Generator |
| Input volage of the Voltage Generator: | AC 0-250V |
| Product Shape: | Stainless Steel Box |
