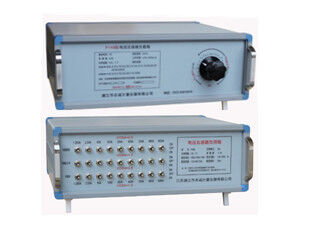

Automatic Voltage Transformer Burden With Air Insulation
Product Summary
Manual or Automatic CT VT Burden box FYC series FYC47-49 CT Burden Technical Parameter Rated Current: 5A, 1A Power Factor and Rated Burden: COSΦ=0.8: 5VA, 10VA, 15VA, 20VA, 30VA COSΦ=1.0: 1VA, 2VA, 5VA Accuracy Class: ±3% Operation Range: (1%-200%). In Test Cable Resistance: 0.02Ω Frequency: 50Hz ...
Product Custom Attributes
Automatic Voltage Transformer Burden
,110V Voltage Transformer Burden
,3% transformer testing equipment
Basic Properties
Trading Properties
Product Description
Manual or Automatic CT VT Burden box FYC series
FYC47-49 CT Burden
Technical Parameter
| Rated Current: | 5A, 1A |
| Power Factor and Rated Burden: |
COSΦ=0.8: 5VA, 10VA, 15VA, 20VA, 30VA COSΦ=1.0: 1VA, 2VA, 5VA |
| Accuracy Class: | ±3% |
| Operation Range: | (1%-200%). In |
| Test Cable Resistance: | 0.02Ω |
| Frequency: | 50Hz |
| Withstand Voltage: | 2kV/1min |
| Insulation: | Air |
| Operating Mode: | Continue at 200%.In |
| Control Mode: | Manual and computer controllable (protocol provided) |
| Cooling Mode: | Fan |
FYC95 PT Burden
Technical Parameters
| Rated Voltage: | 110V, 100V, 110V/√3V, 100V/√3V |
| Power Factor and Rated Burden: |
COSФ=0.8: 10VA, 25VA, 50VA, 100VA (Total burden:185VA) COSФ=1.0: 1VA, 2.5VA, 5VA, 10VA (Total burden:18.5VA) |
| Accuracy Class: | ±3% |
| Operation Range: | (20%-190%). Un |
| Frequency: | 50Hz |
| Withstand Voltage: | 2kV/1min |
| Insulation: | Air |
| Operating Mode: | Continue at 190%.Un |
| Control Mode: | Manual and computer controllable (protocol provided) |
| Cooling Mode: | Fan |
