Automatic Calculation CT Ratio Tester , 600A CT PT Analyser
Product Summary
CT PT Analyzer Test Equipment MCVT-01C Major Technical Parameters Item Description Power Supply AC220V±10% 50/60HZ Output 0-2500Vrms, 5Arms, 20A (peak value) Big current output 0-600A Excitation accuracy ≤0.2% Secondary winding resistance range/accuracy 0～300Ω / ≤0.2% Secondary burden range/accuracy ...
Product Custom Attributes
500VA CT Ratio Tester
,500VA 0.02 Class CT Ratio Tester
,600A 500VA CT PT Analyser
Basic Properties
Trading Properties
Product Description

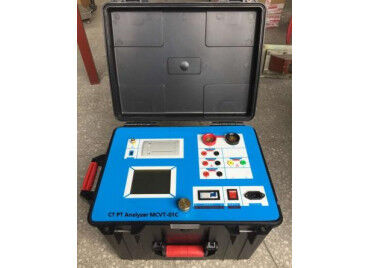

CT PT Analyzer Test Equipment MCVT-01C
Major Technical Parameters
| Item | Description | |
| Power Supply | AC220V±10% 50/60HZ | |
| Output | 0-2500Vrms, 5Arms, 20A (peak value) | |
| Big current output | 0-600A | |
| Excitation accuracy | ≤0.2% | |
| Secondary winding resistance | range/accuracy | 0～300Ω / ≤0.2% |
| Secondary burden | range/accuracy | 5～500VA / 0.2%±0.1VA |
| Phase test (phase angle) | Accuracy/ resolution | 4min, resolution 0.1min |
| Ratio Error Test | Accuracy | 0.02% |
| PT ratio | range/accuracy | ≤500KV / ≤0.2% |
| CT ratio | range/accuracy | ≤25000A/5A (5000A/1A) / ≤0.2% |
| Dimension & Weight | Size:410mm × 260mm × 340mm ,weight:22kgs (including accessories) | |
Features
1. CT test
1) Excitation (VA) characteristic
2) Automatic calculation of knee point value
3) Automatic calculation of 5% and 10% error curve
4) Ratio test
5) Polarity Test
6) Ratio error
7) Phase angle error test
8) Primary flow-through test
9) AC Voltage withstand test
10) Secondary winding resistance test
11) Secondary burden test
12) Iron core demagnetization
2. PT test (electro-magnetic type)
1) Excitation (VA) characteristic
2) Automatic calculation of knee point value
3) Ratio Test
4) Polarity test
5) Ratio Error test
6) Phase angle error test
7) Secondary winding resistance test
8) Secondary burden test
9) AC voltage withstand test
10) Iron core demagnetization
3. With in-built mini printer for printing test report on site
4. Big storage space can ensure saving of 3000 groups of test data.
