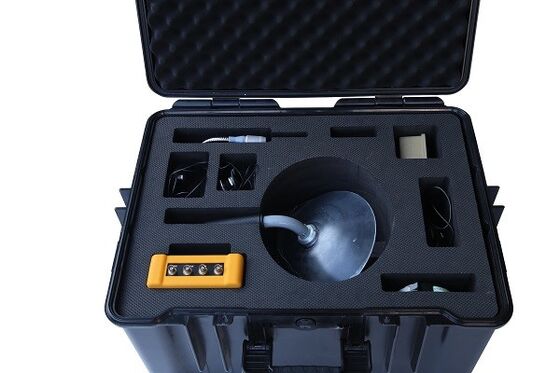

Touch Screen Partial Discharge Test Equipment Inbuilt ARM System

Name: Touch Screen Partial Discharge Test Equipment Inbuilt ARM System
Brand: Zhengzhou Great Electric Co.,Ltd.
SKU: MCPD003
Availability: InStock

Product Summary

Multi function Partial Discharger Tester MCPD003 Technical Index 1. TEV measurement Item Specification Sensor: capacitance type Range: 0-60bBmV Frequency range； 3-100MHz Resolution: 1dB Accuracy: ±1dB Maximum impulse/cycles qty 1400 Minimum impulse rate 10Hz 2. Ultrasonic Measurement Item Specificat...

Product Custom Attributes

Product:

Multi Function Partial Discharger Tester

Model:

MCPD003

Warranty:

1 Year

Application:

Partial Discharge Test

Operation Mode:

Touch Screen

HMI:

Friendly, Inbuilt ARM System

Highlight:

1dB Partial Discharge Test Equipment

LCD Partial Discharge Test Equipment

Multifunctional Partial Discharge Tester

Basic Properties

Place of Origin:

China

Brand Name:

HNMC

Model Number:

MCPD003

Trading Properties

Minimum Order Quantity:

1 set

Price:

Negotiable

Packaging Details:

Carton package

Delivery Time:

20-25 days

Payment Terms:

T/T

Supply Ability:

100 set

Tags:

50Ω Partial Discharge Analyzer

1dB Partial Discharge Test Equipment

HFCT Partial Discharge Test Equipment

Product Description

Multi function Partial Discharger Tester MCPD003

Technical Index

1. TEV measurement

Item	Specification
Sensor:	capacitance type
Range:	0-60bBmV
Frequency range；	3-100MHz
Resolution:	1dB
Accuracy:	±1dB
Maximum impulse/cycles qty	1400
Minimum impulse rate	10Hz

2. Ultrasonic Measurement

Item	Specification
Range:	-7dBuV～68dBuV
Resolution:	1dB
Accuracy:	±1dB
Sensor sensitivity	-65dB (0dB=1V/ubar RMS SPL)
Sensor center frequency	40kHz
Frequency range	20～100kHz
Sensor diameter	16mm
Heterodyne frequency	38.4kHz

Item	Specification
Range	0dBuV～68dBuV(0.001mv～1.000mv)
Resolution	1dB
Accuracy	±1dB
Sensor sensitivity	-65 dB (0 dB=1 volt/μbar RMS SPL)
Frequency range	0～200 kHz

3. HFCT high frequency DC measurement

Item	Specification
Sensor type	HFCT
Range	0pC～25000pC
Sensitivity	not more than 50pC
Test frequency	200KHz～50MHz
Test band width	100 MHz
Inner diameter	45mm
Outer diameter	110 mm
Output impedance	50Ω
Sensor type	HFCT

Item	Specification
Sensor type	UHF
Range	- 65dBm ~0dBm/-10~60 dBm
Sensitivity	＞10mm
Resolution	±0.5dB
Frequency response	300MHz～1500MHz
Output impedance	50Ω
Output interface	BNC connector

4. Size & Weight: 235mm*145mm*46mm / 1.5KGS
5. Rated input supply for charger: 90-264V AC/ 47-63HZ, charging voltage 12V DC

Features

1. 7”LCD display, touch screen, ARM processor and inbuilt operation system, friendly HMI

2. Partial discharge test and location of GIS, Switchgear, Cable tray, cable joint, insulators & LBS on

transmission line, transformer, cables and etc

3. Test result can show discharge strength, discharge phase, history data, etc

4. Rich functions with five testing channels including TEV, air-type ultrasonic AA, contact type

Ultrasonic AE, HFCT, ultra high frequency UHF, infrared temperature test, humidity test, etc

5. With test data management, test object management and test task management function,

convenient for data analysis

6. Can test ambient temperature and humidity of test object

7. Inbuilt function self-tester, more convenient for use

8. With rechargeable lithium battery, 3.7V/21Ah, continuously working for 8 hours after one

time full charging

9. USB interface and RJ45 Ethernet port, SD card 16GB or more

10. Optional accessories includes: TEV sensor, external extended microphone sensor,

HFCT sensor, ultrasonic focuser, contact type ultrasonic sensor, UHF sensor, non-contact

type infrared temperature sensor, battery charger etc.

AE contact-type ultrasonic measurement

UHF ultra high frequency measurement

Touch Screen Partial Discharge Test Equipment Inbuilt ARM System
