200KHz Online Partial Discharge Testing High Accuracy Measurement

Name: 200KHz Online Partial Discharge Testing High Accuracy Measurement
Brand: Zhengzhou Great Electric Co.,Ltd.
SKU: MCPD004
Availability: InStock

Product Summary

Multi function Partial Discharger Tester MCPD004 Use advanced technology and provide better user experience Provide more functions optional for client High stability and reliable performance High accuracy measurement Customization available according to user special requirement Five channels options ...

Product Custom Attributes

Product:

Multi Function Partial Discharger Tester

Model:

MCPD004

Warranty:

1 Year

Frequency Range:

3-100MHz

Operation Mode:

LCD Touch Screen

APP Software:

Available

Highlight:

200KHz lab Online Partial Discharge Testing

200KHz 1dB Online Partial Discharge Testing

200KHz discharge test online

Basic Properties

Place of Origin:

China

Brand Name:

HNMC

Model Number:

MCPD004

Trading Properties

Minimum Order Quantity:

1 set

Price:

Negotiable

Packaging Details:

Carton package

Delivery Time:

20-25 days

Supply Ability:

100 set per month

Tags:

50Ω Partial Discharge Analyzer

1dB Partial Discharge Test Equipment

HFCT Partial Discharge Test Equipment

Product Description

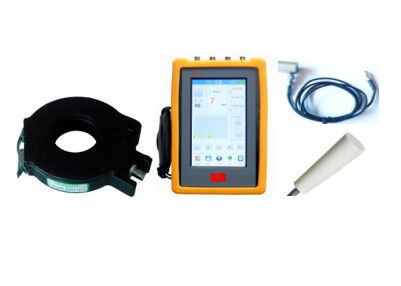

Multi function Partial Discharger Tester MCPD004

Use advanced technology and provide better user experience

Provide more functions optional for client

High stability and reliable performance

High accuracy measurement

Customization available according to user special requirement

Five channels options for more accessories choices

Suitable for lab, worksite online measurement

Widely used in power utilties, maintenance company

Technical Index

1. TEV measurement

Item	Specification
Sensor	capacitance type
Range	0-60bBmV
Frequency range	3-100MHz
Resolution	1dB
Accuracy	±1dB
Maximum impulse/cycles qty	1400

2. Ultrasonic Measurement

Item	Specification
Range	-7dBuV～68dBuV
Resolution	1dB
Accuracy	±1dB
Sensor sensitivity:	-65dB (0dB=1V/ubar RMS SPL)
Sensor center frequency:	40kHz
Frequency range	20～100kHz
Sensor diameter:	16mm
Heterodyne frequency:	38.4kHz

3. AE contact-type ultrasonic measurement

Item	Specification
Range	0dBuV～68dBuV(0.001mv～1.000mv)
Resolution	1dB
Accuracy	±1dB
Sensor sensitivity	-65 dB (0 dB=1 volt/μbar RMS SPL)
Frequency range	0～200 kHz

4. HFCT high frequency DC measurement

Item	Specification
Sensor type	HFCT
Range	0pC～25000pC
Sensitivity	not more than 50pC
Test frequency	200KHz～50MHz
Test band width	100 MHz
Inner diameter	45mm
Outer diameter	110 mm
Output impedance	50Ω
Output interface	BNC connector

5. Size & Weight: 235mm*145mm*46mm / 1.5KGS
6. Rated input supply for charger: 90-264V AC/ 47-63HZ, charging voltage 12V DC

Features

1. LCD touch screen, ARM system processor and inbuilt operating system, user friendly HMI

2. Can operate by android system terminal by APP software provided

3. PD test and location of GIS, Switchgear, Cable tray, cable joint, insulators & LBS, transformer,

cables and etc

4. Test result can show discharge strength, discharge phase, history data, etc

5. With five testing channels include TEV, air-type ultrasonic AA, contact type Ultrasonic AE, HFCT,etc

6. With testing data management, testing object management and testing task management function,

convenient for data analysis

7. Rechargeable lithium battery, 3.7V/21Ah, continuously work for 8 hours after one-time full charging

8. USB, RJ45 Ethernet port, SD card 16GB or more options

9. Optional accessories includes: TEV sensor, external extended microphone sensor, HFCT sensor,

contact type ultrasonic sensor, battery charger etc.
